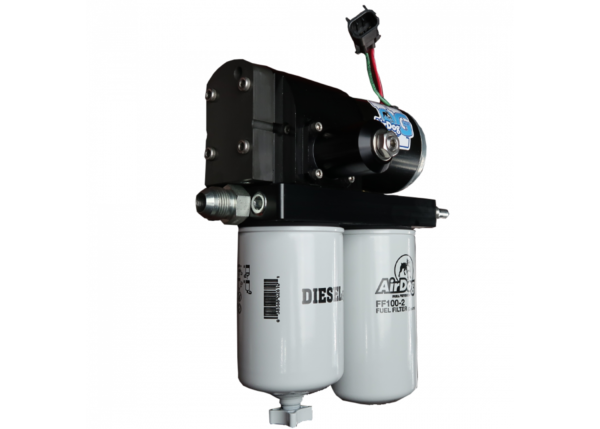

AirDog II-5G DF-220 | A7SABF595 | Powerstroke Lift Pump 08-10 6.4L

Regular price $899.00 USD
Regular price Sale price $899.00 USD
Sale Sold out

Fits 2008-2010 Ford 6.4L Powerstroke All Models.

Download Installation Guide: AirDog II-5G DF-220 A7SABF595 08-10 6.4L Install Guide

The AirDog® II-5G DF-220 includes a 5/8” High Flow suction tube to accommodate the high flows of this system. To install, it is necessary to either drop the fuel tank or to lift the truck bed.

The Pureflow AirDog II 5G 220 GPH A7SABF595 lift pump, or Fuel Preporator, is a must have upgrade for your 2008-2010 6.4L Powerstroke. The fuel system on your 6.4L diesel truck is the heart of the vehicle’s performance and reliability. This high flow and low pressure lift pump is preset at 10psi right out of the box.  The II-5G features a fully adjustable (7-70psi) integrated diaphragm pressure regulator.  This regulator offers more consistent fuel pressure and allows for higher flow rates at pressure.  It can also be boost compensated to battle any pressure drops under open throttle (boost compensation kits sold seperately).

The II-5G DF-220 Powerstroke lift pump mounts to the inner frame rail using the supplied sandwich plate mounting system. The suction/fuel supply side hooks directly to the 5/8″ draw straw installed in the fuel tank. The pressure side line connects directly to the injection pump feed line on the frame rail.  The air/vapor return is sent back to the tank through a return “Y” that splices the AirDog return into the factory engine return.  This pump is designed to bypass the factory pump.  You can download the full PDF Installation manual HERE for a more in depth look at the installation process and a full parts list.

This AirDog II 5G 220GPH Powerstroke lift pump is recommended for trucks that have an aggressivley upgraded fuel system (meaning stock to larger injectors and oversized injection pump; will also support aggressive tuning). The 220GPH pump is designed for performance applications reaching over 1000 RWHP! Backed by a lifetime warranty.

The AirDog II-5G DF-220 for the 08-10 Powerstroke is engineered with the most proven, quiet and reliable motor technology on the market.  It also retains the “demand flow” capabilties of the previous AirDog II systems.  This means that is has a constant supply of clean, pure fuel available for your injector pump at all times.  Any fuel not used by the engine is simply recycled back to the tank, so it will never “over-fuel” your system (see How It Works).  The II-5G features larger 3/4-16 O-ring boss inlet and outlet ports.  A 7/16-20 (-4) low-flow return is used to prevent aeration in the fuel returned to the tank.  The II-5G A7SABF595 uses the same better-than-OEM fuel filter (FF100-2) and water separator (WS100) as the previous AirDog II models.  Pureflow AirDog products are manufactured in Shelbyville, Indiana by a team of skilled workers with unsurpassed attention to detail and using the most stringent quality assurance.

Benefits of the 5G Fuel System

  • Improved Throttle Response
  • Longer Injection System Life
  • Increased Power and Torque
  • Reduced Exhaust Emissions
  • Adjustable Diaphragm Fuel Pressure Regulator
  • Boost Compensation Capability
  • Quiet and Smooth Pump Operation

AirDog 5G offers features to make it more durable than any other brushed DC motor system on the market!

AirDog ® II-5G Installation for Most Any Skill Level

The installation of any AirDog/Raptor system has been designed with the customer in mind. They know not everyone has special tools or fabrication skills, so the installation was made as easy as possible with basic hand tools and the occasional power drill. The quick-connect fittings and fuel lines make this a true plug and go installation, reducing the overall installation time. The step-by-step manual outlines each process of the installation and is accompanied by visual guides to aid your progress.

All-Inclusive Installation Kit Includes:
  • Relay Control Wiring Harness
  • All required Fuel Fittings
  • All Require Fuel Lines
  • Mounting Brackets and Hardware
  • Installation Manual
