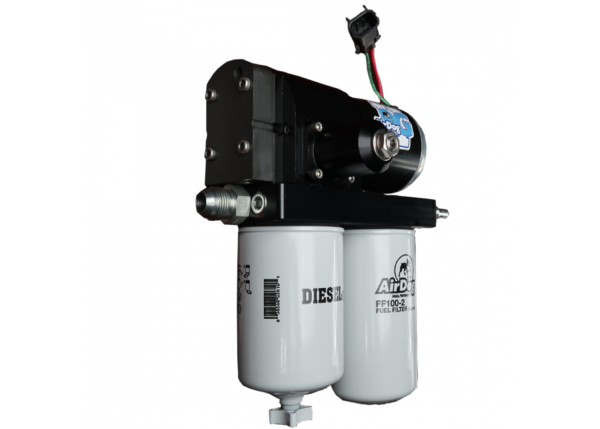

AirDog II-5G DF-100 | A7SPBC262 | Duramax Lift Pump 15-16 6.6L

A7SPBC262
$829.00 USD
$829.00 USD
Sale Sold out

Fits 2015.5-2016 Chevy/GMC 6.6L Duramax All Models.

Download Installation Guide: AirDog® II 15-16 Duramax DF-100, DF-165

This kit does not require any fuel tank modifications for installation.

The AirDog II 5G 100GPH A7SPBC262 lift pump, or Fuel Preporator, is a must have upgrade for your 2015-2016 6.6L LML Duramax. The fuel system on your LML is the heart of the vehicle’s performance and reliability. This low pressure (preset at 8-10 psi) Duramax lift pump mounts in front of the fuel tank to the frame jig. This makes it almost hidden, and keeps it out of the way of rocks and debris.  The pressure side of the pump connects to the injection pump feed line on the frame.  The suction/fuel supply sides connect directly to your factory quick disconnect fittings making the install very straight forward.  Due to the fact the Duramax does not have a factory lift pump, these trucks usually see the most benefit from an AirDog lift pump fuel system. (see How It Works)

The AirDog II-5G fuel pump features a fully adjustable (7-55psi) integrated diaphragm pressure regulator. This regulator offers more consistent fuel pressure and allows for higher flow rates at pressure.  It can also be boost compensated to battle any pressure drops under open throttle (boost compensation kits sold seperately). The AirDog 2 5G also includes an updated 12 gauge wiring harness with Metri-Pack 280 connectors, which allows for higher current flow without creating excessive heat.

The AirDog II 5G 100GPH Duramax fuel pump will solve the infamous P0087 & P1093 low fuel rail pressure codes by supplying your CP4 injection pump with fuel, rather than your injection pump doing most of the work pulling the fuel up from the tank. This positive supply of purified fuel being fed to your CP4 will also add performance, throttle response, and longevity to your vehicle. Due to extra stress on your fuel system from either high mileage and/or additional performance modifications, like a tuner or larger injectors, your injection pump can become weak over time. This may result in a drop of performance, reliability, and fuel economy. The supplied water separator (WS100) and fuel filter (FF100-2), that mount to the pump, filter your fuel down to a 2 micron rating which surpasses the stock fuel filters filtration capability.

This AirDog II 5G DF-100 Duramax lift pump is recommended for trucks that have a stock to a mildly upgraded fuel system (meaning mild or stock injectors, injection pump, and tuning).  See Which Size Do I Need.  Backed by a lifetime warranty.

The AirDog II-5G DF-100 for the 15.5-16 Duramax is engineered with the most proven, quiet and reliable motor technology on the market.  It also retains the “demand flow” capabilties of the previous AirDog II systems.  This means that is has a constant supply of clean, pure fuel available for your injector pump at all times.  Any fuel not used by the engine is simply recycled back to the tank, so it will never “over-fuel” your system.  The II-5G A7SABC512 uses the same better-than-OEM fuel filter (FF100-2) and water separator (WS100) as the previous AirDog II models.  Pureflow AirDog products are manufactured in Shelbyville, Indiana by a team of skilled workers with unsurpassed attention to detail and using the most stringent quality assurance.

Benefits of the 5G Fuel System

  • Improved Throttle Response
  • Longer Injection System Life
  • Increased Power and Torque
  • Reduced Exhaust Emissions
  • Adjustable Diaphragm Fuel Pressure Regulator
  • Boost Compensation Capability
  • Quiet and Smooth Pump Operation

The AirDog 5G offers features to make it more durable than any other brushed DC motor system on the market!

AirDog ® II-5G Installation for Most Any Skill Level

The installation of any AirDog II system has been designed with the customer in mind. They know not everyone has special tools or fabrication skills, so the installation was made as easy as possible with basic hand tools and the occasional power drill. The quick-connect fittings and fuel lines make this a true plug and go installation, reducing the overall installation time. The step-by-step manual outlines each process of the installation and is accompanied by visual guides to aid your progress.

All-Inclusive Installation Kit Includes:

  • Relay Control Wiring Harness
  • All required Fuel Fittings
  • All Require Fuel Lines
  • Mounting Brackets and Hardware
  • Installation Manual
