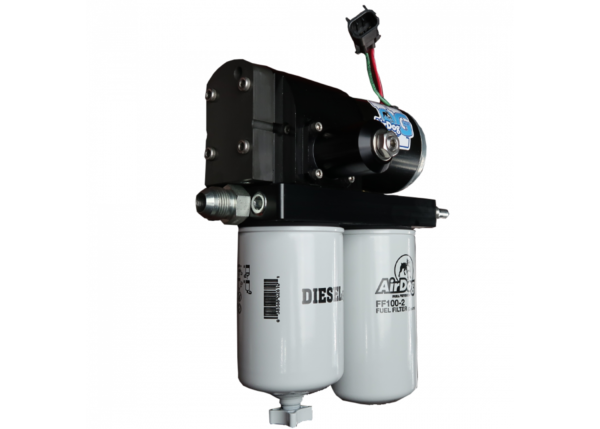

The AirDog II 5G 220GPH A7SABC515 Duramax Lift Pump Air/Fuel Separation system, or Fuel Preporator, is a top recommended upgrade for your aggressively modified 2015-2016 Chevy/GMC Duramax diesel. The fuel system on your Duramax diesel is one of the most important systems when it comes to performance and reliability. This high flow and low pressure pump is preset to 8-10psi right out of the box. The II-5G features a fully adjustable (7-55psi) integrated diaphragm pressure regulator. This regulator offers more consistent fuel pressure and allows for higher flow rates at pressure. It can also be boost compensated to battle any pressure drops under open throttle (boost compensation kits sold separately).
The II-5G DF-220 Duramax lift pump mounts to the factory frame standoff in front of the fuel tank using our cradle bracket. The suction/fuel supply sides hook directly up to the 5/8″ draw straw installed in the tank. The pressure side feeds the injection pump through a direct connection to the 1/2″ factory feed line on the frame. The air/vapor return is sent back to the tank through the factory 12mm suction line once the module is modified. Due to the fact the Duramax does not have a factory lift pump, these trucks usually see the most benefit from an AirDog lift pump fuel system. (see How It Works). You can download the full PDF Installation manual HERE for a more in depth look at the installation process and a full parts list.
